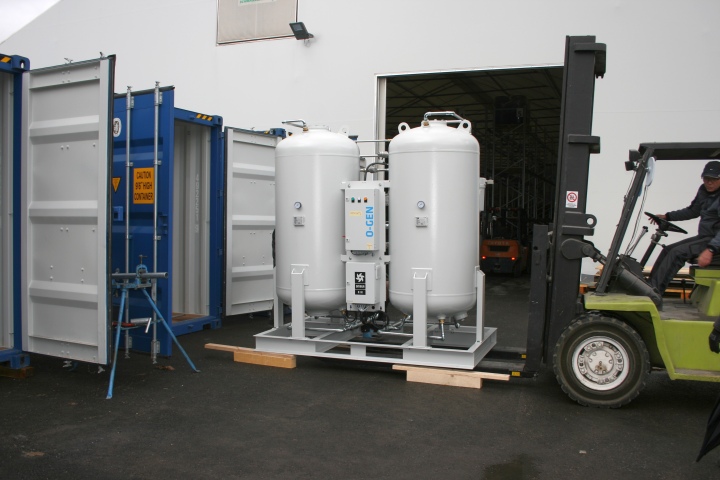

CONTAINERIZED OXYGEN GENERATOR THRU PSA SYSTEM –M100E
SYNOPSIS:
Model M100E series produces 100 Cu.m / day i.e 100,000 liters per day.
Model M30E produces 25 Cu.m / day i.e 25,000 liters per day.
Plug & Serve Oxygen Generator units using PSA Technology.
On Site Oxygen Generation
Medicinal Oxygen Grade ready to connect to oxygen manifold of hospital ( No
need of additional storing & conversion facility from Liquid to medicinal
oxygen).
Provision to have Filling Station for cylinder filling

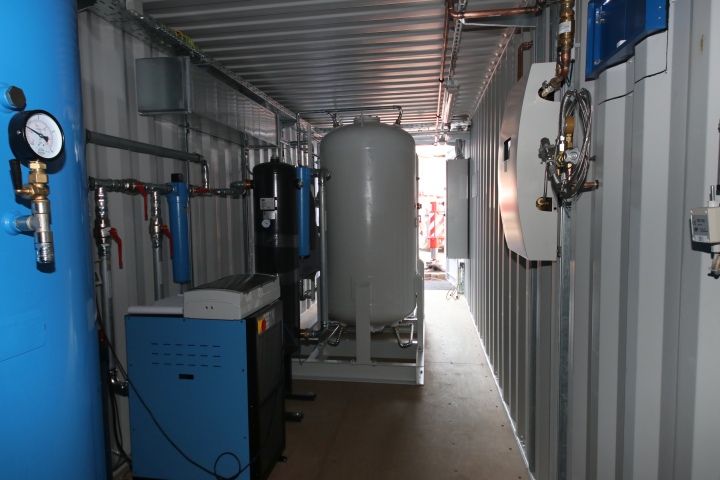

Compact space, all in a 20 ft, standard container.
Easy maintenance
Fully automatic, very less human intervention
Confirming to EU standards
11 kW power supply required
TECHNICAL SPECIFICATION :
Flow Rate: 5 cu.m / hr
Purity: >=95 %
Dew Point: -50⁰C
Operating Temperature: 5⁰ C- 46⁰ C
BASIC MODEL :
100 % Redundancy
Dual Compressor
Control system with SIEMENS color touch panel
Automatic switchover
Automatic Start & Stop
Maintenance service without shut down
Molecular sieve moisture protection
Air Analyzer
Designed for dynamic pressure loading
Piping- AISI316
Data logging (saved in memory card)
Audio / Visual Alarm
Flow meter
Temperature Sensor
